How to Recover Data from an SSD: A Professional Lab Guide

When you realize your SSD might be failing, the most important action is to power down the device immediately. Continuing to use a failing drive can trigger internal cleanup processes (like the TRIM command), which can permanently erase deleted data. It can also cause further electronic or firmware damage, making a professional recovery more difficult, if not impossible.

Why SSD Data Recovery Is Not a DIY Project

When a solid-state drive fails, the first instinct for many is to download data recovery software. While this might be a valid step for an accidental deletion on a healthy traditional hard drive, it's often the worst thing you can do for a failing SSD. The architecture of an SSD is fundamentally different from a spinning hard disk drive (HDD), and its failure modes are far more complex.

Unlike HDDs that often provide audible warnings like clicking or grinding, SSDs typically fail silently and suddenly. One moment you're working, and the next, your computer refuses to boot, or the drive has vanished. This isn't just about a few lost files; it’s usually a symptom of a much deeper, physical problem.

The Real Causes of SSD Failure

Most of the time, when an SSD becomes inaccessible, it's due to a hardware or firmware issue that no software can resolve. Understanding the root cause is critical to determining the proper recovery path. From our experience in the lab, these are the most common culprits:

• Controller Failure: The controller is the SSD's central processor, managing all data operations. When it fails, the drive is effectively "brain-dead" and becomes completely invisible to your computer. No software can communicate with it.
• Firmware Corruption: The drive's internal operating system, its firmware, can become corrupted. This is why a drive might suddenly show up with a generic name like "SATAFIRM S11," report a 0MB capacity, or fail to initialize.
• NAND Chip Degradation: The flash memory chips that hold your data have a finite lifespan. As they wear out from read/write cycles, they develop bad blocks, leading to errors that can eventually make data unreadable.
• Electronic Damage: A power surge or component failure on the printed circuit board (PCB) can cut off power and communication to the entire drive, rendering it unresponsive.

These are physical and firmware-level failures, not logical errors that a software scan can fix. Attempting to run recovery software on a drive with these symptoms puts additional stress on failing components, which can turn a recoverable situation into a permanent data loss scenario.

Lab Insight: We frequently receive SSDs from clients who have tried running multiple recovery tools. Each scan attempt further degrades the delicate NAND chips, scrambling the data structures. This can drop the chances of a successful lab recovery from over 90% down to less than 50%.

What to Do When Your SSD Fails

Your actions in the first few minutes after noticing a problem are critical. It can genuinely be the difference between a full recovery and losing your data forever. We provide this first-response plan to everyone who calls our lab.

What You Should Do Right Now	What You Must Avoid at All Costs
Power down the computer immediately. This stops the OS from issuing potentially destructive commands.	Do not run data recovery software. It's ineffective for physical or firmware failures and can cause permanent data loss.
Safely disconnect the SSD, if it's an external drive or you are comfortable removing it internally.	Do not restart the computer repeatedly. Each power cycle can worsen firmware corruption or electronic damage.
Note the exact symptoms. Was the drive slow? Did it disappear? Did you get an error message?	Do not format or re-initialize the drive. These actions overwrite critical data structures needed for recovery.
Contact a professional data recovery lab. A professional evaluation is the safest next step.	Do not open the SSD enclosure. There are no user-serviceable parts, and you risk causing electrostatic damage.

Following these guidelines gives your data the best possible chance of a successful recovery. MDRepairs provides nationwide mail-in diagnostics to safely determine the cause of failure. If you're in the area, you can also learn about our professional data recovery services in New York City.

Spotting the Red Flags of a Dying SSD

Unlike their mechanical counterparts, SSDs tend to fail without audible warnings. The initial signs are often subtle and easily dismissed as software glitches. However, these symptoms are frequently the drive's last attempt to signal that something is critically wrong at the hardware or firmware level.

Recognizing these signs is crucial. Continuing to use a drive that is exhibiting failure symptoms can quickly push it past the point of recoverability.

Performance Dives and System Crashes

One of the earliest indicators of a failing SSD is a sudden, severe drop in performance. This goes beyond the system feeling a bit slow; it manifests as major operational problems.

You might experience frequent system freezes where the computer becomes completely unresponsive. Alternatively, you may encounter recurring crashes, such as the "Blue Screen of Death" (BSOD) on Windows or a kernel panic on macOS. These events often occur during boot-up or when accessing large files.

These issues are commonly tied to failing NAND memory cells. As the cells that store your data begin to degrade, the SSD controller struggles to read and write information accurately. Eventually, it returns errors that the operating system cannot handle, leading to a system crash.

Files Vanish or Become Unreadable

Another set of symptoms directly affects your data. You may find that specific files or folders cannot be opened, moved, or deleted. Attempting to access them can trigger error messages like "Request failed due to a fatal device hardware error" or "The file or directory is corrupted and unreadable."

You might also notice that recently saved files disappear after a reboot, a classic sign that the SSD's NAND flash is failing to retain data.

Real-World Scenario: We assisted a photographer whose NVMe SSD, containing a full day's wedding photos, suddenly appeared as a "RAW" partition and was completely inaccessible. This wasn't a simple file system error; the drive’s controller had malfunctioned, corrupting the translation layer that maps logical data to physical NAND locations. No software could resolve this because the problem was at the hardware level.

The Drive Is Not Detected

The most alarming symptom is when the SSD disappears entirely. You might turn on your computer to a "No Bootable Device Found" error, or an external SSD may no longer appear when connected.

In these cases, checking the computer's BIOS/UEFI settings will likely confirm the drive is not being detected. This almost always signals a catastrophic hardware failure.

From a recovery lab perspective, here’s what these symptoms typically mean:

• Drive not detected in BIOS: This often points to a failed controller chip or critical firmware fault. The "brain" of the SSD is offline, preventing the computer from communicating with the memory chips.
• Drive shows incorrect capacity (e.g., 0MB): This is a textbook sign of firmware corruption. The drive's internal software is scrambled and cannot report its own parameters correctly.

In these situations, data recovery software is completely useless. The software requires a functional, recognized drive to perform a scan. At MDRepairs, our nationwide mail-in service specializes in these failures. Our lab utilizes specialized hardware to bypass the faulty controller and firmware, allowing us to access the NAND memory chips directly and reconstruct your data.

What Data Recovery Software Can (and Can't) Do for Your SSD

Commercial data recovery programs often claim to rescue files from any disaster. While they can be effective for accidental deletions on healthy hard drives, they are severely limited when it comes to modern SSDs. In fact, running software on a failing solid-state drive can make the problem worse.

The only scenario where software has a chance is for a recently deleted file on a perfectly healthy SSD where the TRIM command has not yet executed.

TRIM is a background process that permanently wipes data from blocks marked for deletion to maintain SSD performance. Once TRIM has run, the data is irrecoverable by any means, including professional lab services.

Why Software Fails When an SSD Truly Fails

Most SSD data loss is not caused by simple deletion. The real culprits are hardware or firmware problems that software is not designed to address. Running a recovery tool on a physically failing SSD is like trying to fix a seized engine by turning up the radio - it's irrelevant to the core problem and can cause more damage.

Here are the common failure points where software is powerless:

• Firmware Corruption: When an SSD's internal operating system is corrupted, it may report its name as "SATAFIRM S11" or show a 0MB capacity. Only specialized lab equipment can interface with the drive in a factory mode to bypass this corruption.
• Controller Failure: If the main controller chip fails, the drive is electronically dead. Software requires a working controller to communicate with the NAND memory chips where your data resides.
• Physical NAND Degradation: As flash memory cells wear out, they generate read errors. Software scans force the drive to repeatedly try reading these failing cells, putting extreme stress on them and potentially causing irreversible data corruption.

A common mistake we see at MDRepairs is users running multiple recovery programs on a dying drive. Each attempt hammers the failing components, reducing the chances of a successful professional recovery. It's a gamble that rarely pays off.

The Real Dangers of a DIY Scan

Running software on a physically failing SSD isn't just ineffective; it's actively harmful. A stressed controller can trigger further firmware corruption. More importantly, it accelerates the degradation of the NAND flash memory, making professional recovery more complex, more expensive, or sometimes impossible.

Data loss from SSDs is a significant issue. A CrashPlan report on data loss statistics highlights that storage failure is a top cause of data loss incidents. The very mechanisms that make SSDs efficient, like TRIM, are what make data recovery so challenging, which you can understand further by reading about secure methods for HDDs and SSDs to completely wipe out a hard drive.

If your SSD is not detected, is extremely slow, or is reporting errors, the safest action is to stop and seek a professional diagnosis. Our nationwide mail-in service can identify the exact cause of the failure without putting your data at further risk.

What Really Happens Inside a Professional Data Recovery Lab

When you send your failed SSD to a professional lab like MDRepairs, the process is far more involved than simply running a program. Your drive begins a secure, documented journey handled by experienced data recovery engineers. It is a systematic process designed to safely access your data without causing further harm.

Upon arrival at our facility, your drive is logged, and an experienced technician - not a salesperson - begins a comprehensive diagnostic evaluation.

The Initial Diagnostic: Identifying the Root Cause

This first step is critical and non-intrusive. We never power on a potentially unstable drive in a standard computer. Instead, we connect it to specialized diagnostic hardware that allows us to communicate with it at a low level, bypassing the standard operating system interface.

Our initial checks include:

• Electronic Stability: We analyze the printed circuit board (PCB) for shorts or damaged components that would make it unsafe to power on.
• Firmware Response: We observe the controller chip's behavior. Is it responding correctly, stuck in a busy state, or completely silent? This tells us if the issue is firmware-related.
• NAND Health: Our tools can often read a health report from the individual memory chips, identifying excessive wear or a high number of read errors.

This evaluation allows us to determine the exact cause of failure, from which we can provide you with a firm price quote and a realistic recovery timeline. Our process is transparent, and we proceed only with your approval.

We believe you should know the exact problem, the probability of success, and the total cost before committing. Our no data, no charge policy ensures you only pay if we successfully recover the data you need.

Advanced Lab-Level Recovery Techniques

Once you approve the quote, our engineers apply techniques that are impossible to perform outside of a specialized lab. The approach is dictated entirely by the diagnostic findings.

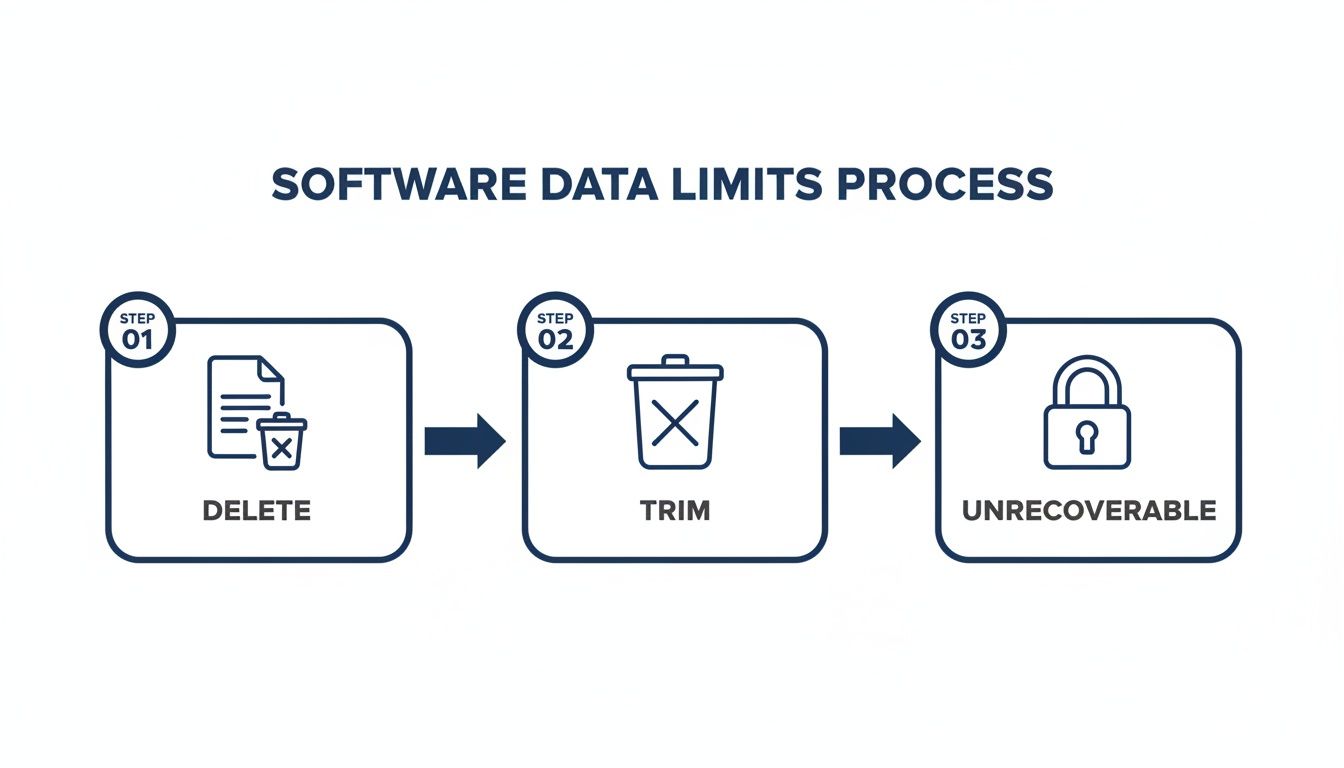

The infographic below illustrates a key challenge with SSDs - the TRIM command. Once a file is deleted and TRIM is executed, the data is permanently gone, making software-based recovery impossible.

This is why, for any physical or firmware failure, we must bypass the standard operating system and interface directly with the drive's hardware.

Firmware Manipulation and Controller Bypassing

In many cases, the data on the NAND chips is intact, but corrupted firmware or a faulty controller is blocking access. This is where we utilize tools like the PC-3000, the industry standard for professional data recovery.

With this hardware, our engineers can:

• Load a factory-level microcode to place the drive into a special service mode.
• Bypass the corrupted firmware to communicate directly with the raw NAND memory.
• Rebuild the translator module, the critical data structure that maps where file fragments are stored across the memory chips.

This is a form of software-driven microsurgery performed at the hardware level.

Chip-Off Recovery

In the most severe cases, such as a physically cracked PCB or a completely dead controller chip, a "chip-off" recovery is necessary. This is a last-resort, highly advanced technique.

It involves carefully desoldering each NAND memory chip from the circuit board. We then read the raw data from each chip using a specialized programmer and use sophisticated algorithms to reassemble the data in the correct order. It is an intricate process that requires deep knowledge of how that specific SSD model organizes and encrypts data.

For these worst-case scenarios, our California data recovery lab is fully equipped to handle even the most complex chip-off cases for SSDs, NVMe drives, smartphones, and more.

Once the data is successfully reconstructed, we copy it to a new, healthy drive and securely ship it back to you.

What Does SSD Recovery Cost & How Long Does It Take?

When facing data loss, the two most pressing questions are "How much will this cost?" and "How long will it take?" The answer depends entirely on the nature of the SSD's failure. There is no flat-rate price for professional data recovery because the work involved varies dramatically from case to case.

The cost is a direct reflection of the failure's complexity, the engineering time required, and the specific tools needed to resolve the issue.

What Determines the Cost of an SSD Recovery

The financial gap between a simple logical recovery and a complex hardware-level repair is significant. This is why our initial, no-obligation diagnostic is so important - it allows us to provide a firm, transparent quote based on the actual problem.

The main factors influencing the cost are:

• Type of Failure: A logical issue, such as an accidentally deleted partition on a healthy drive, is far less labor-intensive and therefore less expensive than a catastrophic controller failure requiring a chip-off procedure.
• Firmware Complexity: Each SSD manufacturer uses proprietary, often encrypted, firmware. Rebuilding a corrupted translator module on a modern NVMe drive is a significant engineering challenge requiring specialized expertise.
• NAND Chip Configuration: In a chip-off recovery, the number of NAND memory chips directly impacts the complexity. Desoldering, reading, and reassembling data from sixteen individual chips is a much more intensive job than working with four.
• Encryption: If the drive is protected by hardware encryption like BitLocker or FileVault, the drive must first be repaired to a state where it can accept the decryption key, adding a critical layer to the process.

Our Promise: Our no data, no charge policy is straightforward. If we cannot recover the specific files you need, you do not pay for the recovery service. This ensures the process is completely risk-free for our clients.

Realistic Price Ranges for Different Scenarios

To help set realistic expectations, here are some typical cost ranges. As detailed in data recovery cost statistics and what they mean for consumers, SSD recovery pricing varies widely. Simpler logical issues often fall in the $200 to $600 range.

However, severe hardware failures involving a dead controller or degraded NAND flash typically range from $600 to over $3,000. These cases require advanced lab techniques where we must bypass the failed components to read data directly from the memory chips. The complexity of proprietary firmware and encryption means the success rate for these advanced SSD recoveries is generally between 60%-80%.

Typical Timelines for the Recovery Process

Similar to cost, the recovery timeline is tied directly to the complexity of the problem. Once your drive arrives at our lab via our nationwide mail-in service, our team begins the evaluation.

Here is a general guide to our service tiers:

Service Tier	Turnaround Time	Best For
Standard Service	5-10 Business Days	Our most popular option for non-critical data.
Rush Service	2-4 Business Days	For urgent situations where you need your data back quickly.
Emergency Service	24/7/365	For mission-critical business data or extreme time constraints.

The initial evaluation is typically completed within one business day of receipt. From there, the timeline depends on the service level you select and the complexity of the recovery. A straightforward firmware repair may take a few days, while a complex chip-off case on a high-capacity drive will naturally require more time.

For urgent needs, our Texas data recovery facility and other labs offer expedited options to minimize downtime. We provide regular updates throughout the entire process.

Your SSD Data Recovery Questions, Answered

When you're facing data loss from an SSD, it's natural to have questions. We believe that providing clear, honest answers is the first step toward a solution. Here are some of the most common questions our clients ask.

Can You Get Data Off a Totally Dead SSD?

Yes, in most cases. A "dead" SSD that won't power on or be detected by a computer usually has an electronic failure on the circuit board or a failed controller chip. Fortunately, your data is stored on separate NAND flash memory chips, which are often unaffected by these failures.

At MDRepairs, our job is to bypass the failed components. Using specialized hardware, we can access the NAND chips directly, read the raw data, and reconstruct it. This is a hardware-level procedure that software cannot perform.

How Does the TRIM Command Affect Data Recovery?

TRIM is a feature designed to maintain SSD performance, but it is a major obstacle for data recovery. When you delete a file on an SSD, the operating system sends a TRIM command that instructs the drive to permanently erase those data blocks.

Once this process is complete, the data is gone forever and cannot be recovered by any means. This is why it is absolutely critical to stop using the drive immediately after data loss occurs. Powering it down before the TRIM command is executed preserves the chance for a successful recovery.

Is It Safe to Mail My SSD for Recovery?

Yes, provided you are working with a reputable lab with strict security protocols. At MDRepairs, we handle sensitive corporate and personal data from clients across the United States every day. We provide clear instructions for secure packaging and maintain a strict chain of custody from the moment your device arrives.

Confidentiality is paramount. After a successful recovery, we transfer your files to a new, encrypted drive or provide a secure download link. Your privacy is protected throughout the entire process.

Why Does SSD Recovery Cost More Than Hard Drive Recovery?

The primary reason is complexity. While HDDs have mechanical parts, their technology is more standardized. SSDs are far more complex. Every model has proprietary firmware and a unique controller chip that organizes and scrambles data in a specific way.

Recovering data from a failed SSD requires highly specialized tools like the PC-3000 to interface with this specific firmware. It demands deep engineering knowledge to reverse-engineer data patterns and may require advanced "chip-off" procedures. This work is more time-consuming, requires more advanced technology, and demands a higher level of expertise, all of which are reflected in the cost.

The Bottom Line: Modern SSDs are complex devices. Due to their unique firmware, encryption, and the TRIM command, they fail in ways that commercial software cannot address. A professional diagnosis is the only safe way to determine the cause of failure and explore your recovery options.

At MDRepairs, our nationwide mail-in diagnostics provide the clear answers you need. We will pinpoint the exact cause of failure and give you a firm quote backed by our no data, no charge guarantee, allowing you to make an informed decision with zero risk.

---

If your SSD has failed, don't risk your data with DIY software. Have the device professionally evaluated by the experts at MDRepairs. Learn more about our nationwide mail-in data recovery services for SSDs, HDDs, RAID systems, and more at https://mdrepairs.com.

When DIY SSD recovery has failed

If the SSD is not detected, shows the wrong capacity, goes read-only, freezes during imaging, or contains deleted files affected by TRIM, do not keep experimenting. SSD recovery depends on controller behavior, firmware tables, NAND condition, and encryption. Consumer software cannot repair those layers, and repeated scans can add writes or force a failing SSD to drop offline before a usable image is made.

Shut the system down, remove the SSD if you can do so safely, and get the failure diagnosed before trying more repairs. MDRepairs performs SSD data recovery for SATA, NVMe, M.2, and external SSDs in our New Jersey lab. Start through our mail-in recovery service from anywhere in the US, with insured shipping, a prepaid inbound label, a $100 diagnostic applied toward recovery, and no data, no charge.

Data recovery from a dead SSD

A dead SSD is different from a dead hard drive. There are no platters or read heads, so silence does not tell you much. The SSD may be completely undetected, identify with the wrong name, show a tiny capacity, freeze the computer, or appear only for a few seconds before dropping offline. Those symptoms usually point to controller failure, firmware corruption, bad NAND, power circuitry faults, or damaged board components.

The first step is to stop trying to force the SSD to mount. Every power-on attempt can trigger background routines inside the SSD. Wear leveling, garbage collection, TRIM handling, and firmware recovery attempts can all change what is available. If the drive is unstable, cloning software may skip the exact areas needed to reconstruct the file system, or it may push the SSD into a worse state.

In a lab, we start by checking the electrical condition of the board and confirming whether the controller can communicate. If the SSD can be stabilized, the safest path is usually controlled imaging through professional tools that can manage timeouts, bad blocks, and firmware-level access. If the controller is not responding, recovery may require deeper work with the controller family, translator data, and NAND structure. Modern SSDs often encrypt data internally, even when the user never set a password, so chip-off recovery is not automatically possible. The controller and its metadata may be required to turn raw NAND reads back into usable files.

For users, the practical rule is simple: if the SSD is detected consistently and the lost data was deleted or formatted, a careful software recovery attempt on a clone may be reasonable. If the SSD is not detected, shows the wrong capacity, disconnects, overheats, or contains business-critical files, treat it as a hardware case. MDRepairs handles SSD data recovery in our New Jersey lab and accepts mail-in cases nationwide, including failed SATA, NVMe, M.2, and external SSDs.

Frequently Asked Questions

Can files be recovered from an SSD that is not detected?

Often yes, but it depends on why the SSD is not detected. Board faults, firmware issues, controller problems, and NAND degradation each require a different approach. If the SSD never appears in BIOS or Disk Management, software recovery on your computer will not be enough.

Is chip-off recovery possible on a dead SSD?

Sometimes, but it is not the default answer for modern SSDs. Many SSDs use controller-managed translation and internal encryption, so raw NAND reads may not produce usable files by themselves. A lab first determines whether the original controller path can be repaired or accessed safely.

The Lab Side of SSD Recovery

SSDs fail at the controller and firmware level with little warning, and once that happens no software can reach the NAND correctly. Chip-level and firmware work on a bench is what remains. Browse our SSD and data recovery services to see how dead SATA, M.2, and NVMe drives are handled. The diagnostic is $100, applied toward recovery. No data, no charge.
